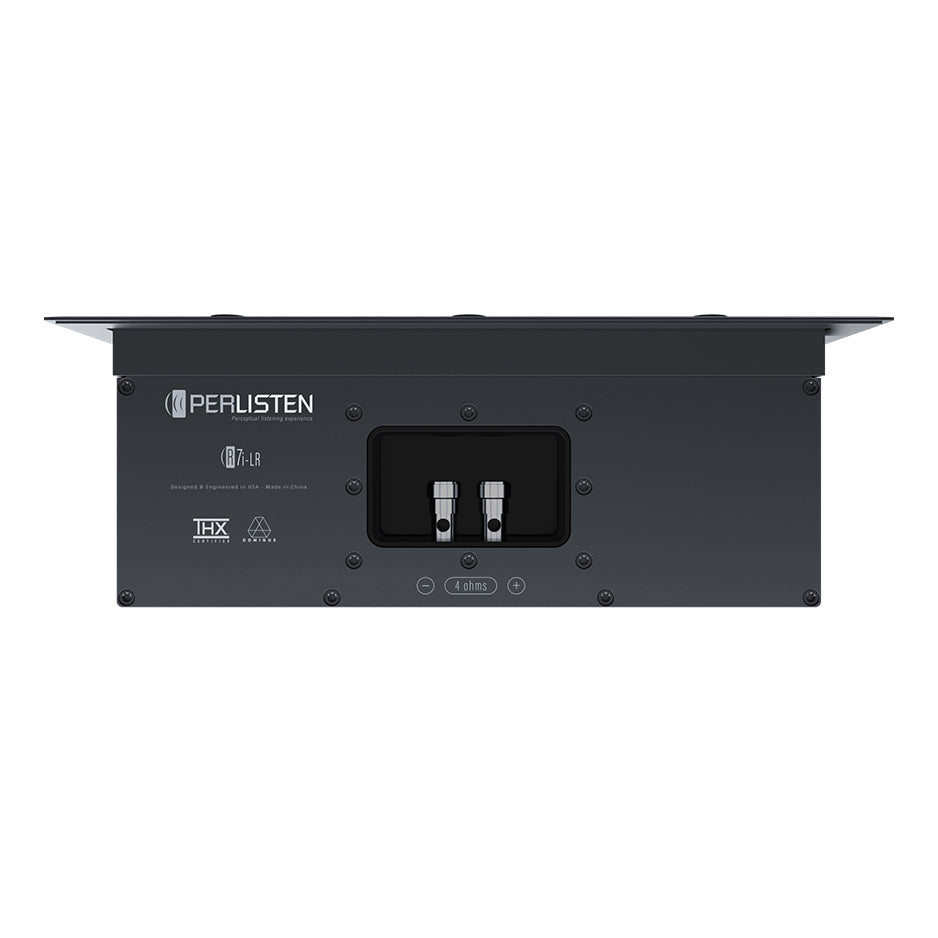

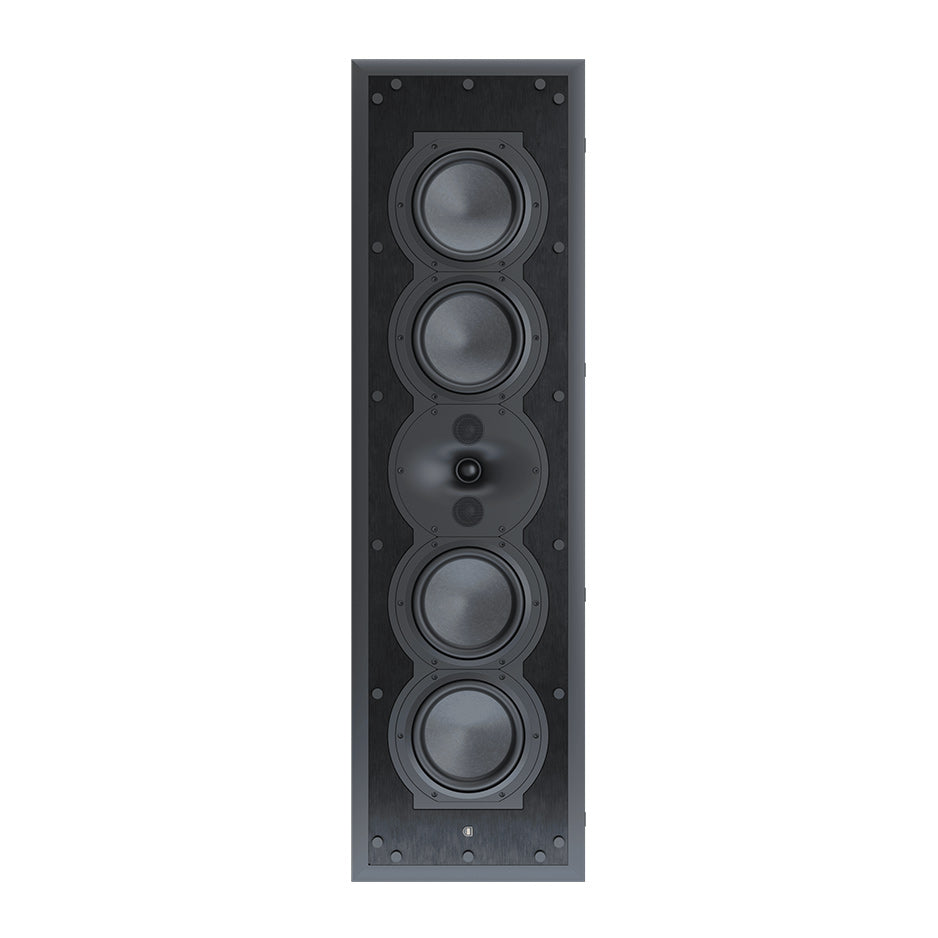

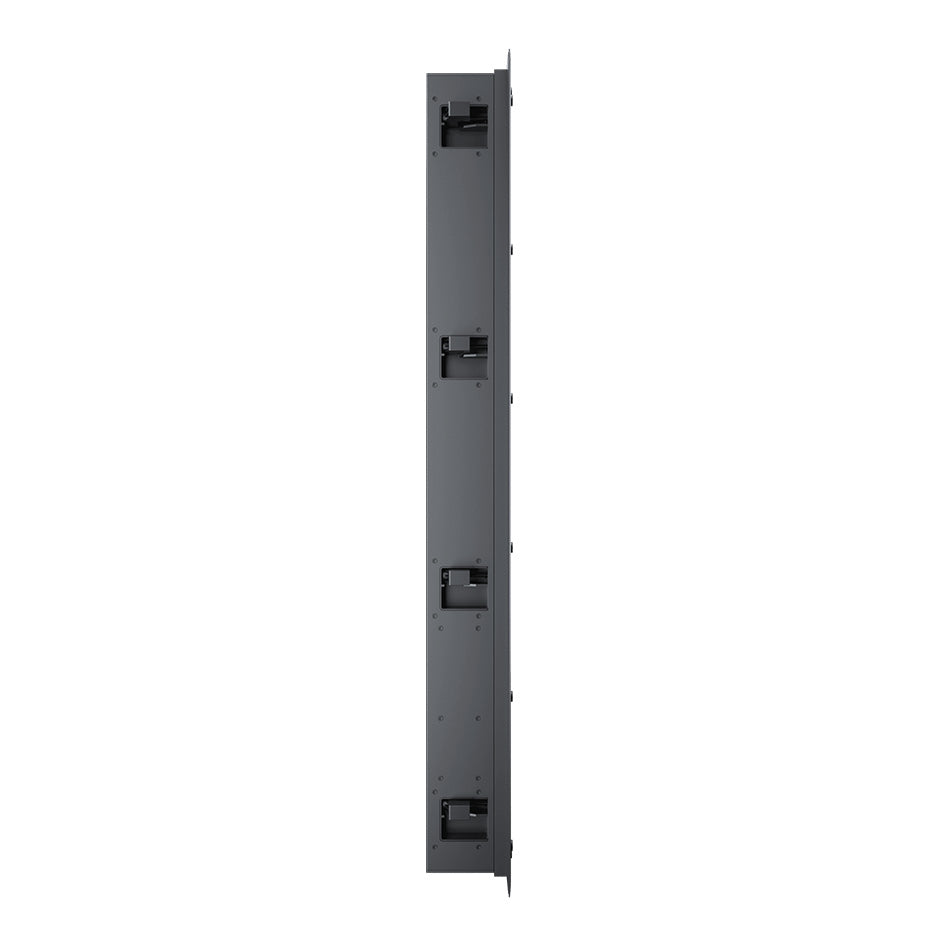

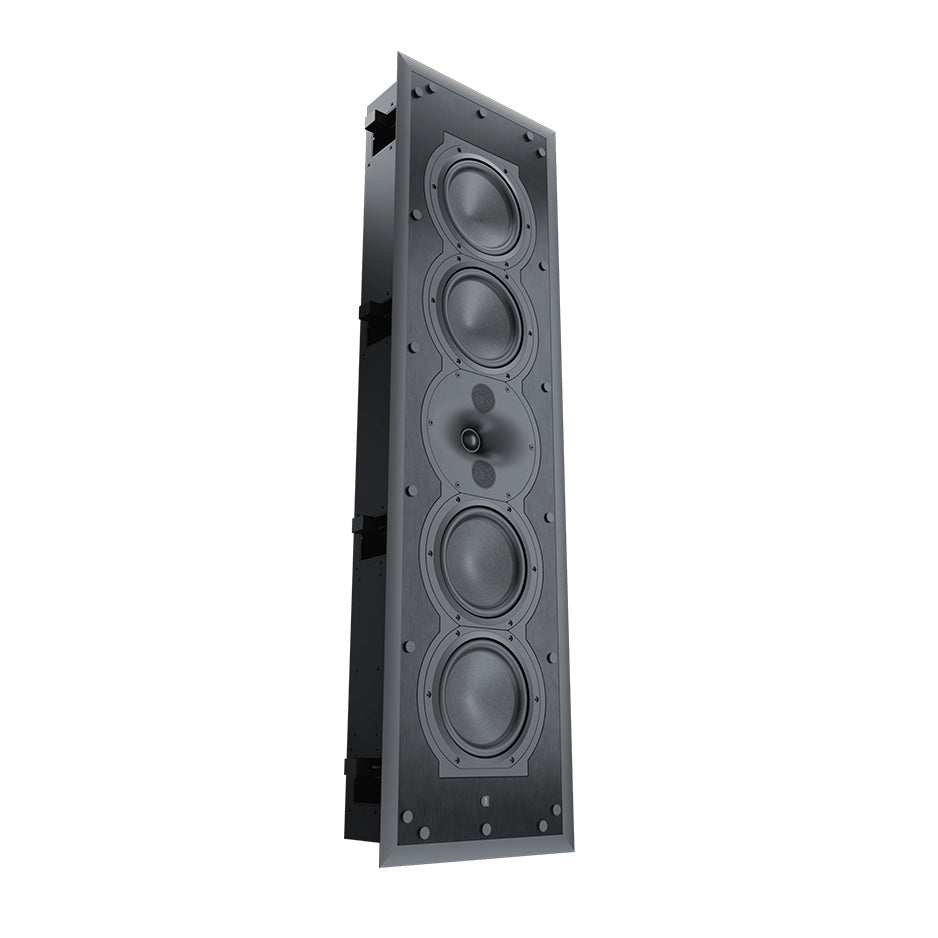

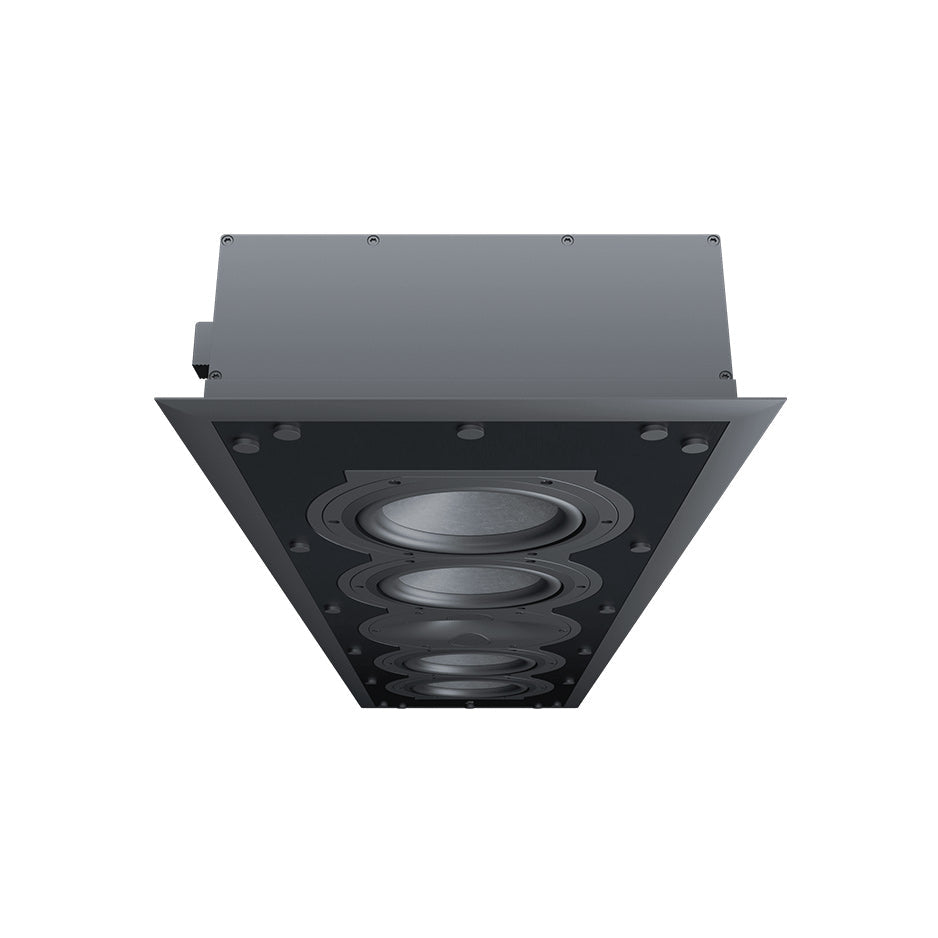

Perlisten R7i-LR In-Wall Speaker

The Perlisten R7i-LR in-wall speaker is the architectural manifestation of the acclaimed R-Series, engineered to deliver a true high-performance audio experience from a source that completely disappears into your room. This is not a typical in-wall speaker; it is a reference-level loudspeaker, meticulously designed to bring the precision, clarity, and dynamic power of Perlisten's freestanding speakers to a custom-installed format. It peaks at 115.9dB with second and third harmonic distortion held under 3%, which is freestanding-speaker output from a cabinet buried in the wall.

Key Features

• 115.9dB Peak Output: Holds 115.9dB peaks with second and third harmonic distortion under 3%, measured across 100Hz to 20kHz, so reference-level scenes stay clean.
• Proprietary DPC-Array: The heart of the R7i-LR is a patent-pending DPC-Array with three 26mm silk domes, meticulously engineered for exceptional accuracy, smooth response, and controlled dispersion.
• HPF Woofers: Four 165mm (6.5") HPF (Hybrid Pulp Formulation) cone woofers deliver bass that is incredibly stiff, lightweight, and powerful, revealing stunning texture and nuance.
• Perfect Timbre Matching: Shares the same DPC-Array and driver technology as the entire R-Series, ensuring a seamless and tonally cohesive soundfield for a truly immersive experience.
• Architectural Integration: Requires a 4.0 inch (101.7mm) mounting depth, making it ideal for installation in standard 2x6 walls or other deep-cavity constructions.
• All-Aluminum Cabinet: Built into an all-aluminum cabinet just 111mm (4.4 inches) deep behind the grille, with an integral aluminum extrusion rear enclosure.
• Paintable Grille: Includes a low-profile, perforated grille that can be painted to perfectly match your wall color, allowing the speaker to become truly invisible.

Heard but Not Seen

The R7i-LR is the ultimate solution for the enthusiast who craves world-class sound without the visual presence of traditional speakers. Its design allows it to be installed flush within a wall, completely hidden behind a paintable grille, preserving the clean aesthetic of your living space. But make no mistake, this is a serious loudspeaker. Perlisten has poured all of its acoustic expertise into the R7i-LR, creating an in-wall speaker that delivers the same dynamic, detailed, and immersive performance that has made the R-Series a global sensation. It’s the best of both worlds: sonic immersion and visual purity.

Controlled, Cohesive Sound

At the core of the R7i-LR's exceptional performance is Perlisten’s unique DPC-Array. This advanced tweeter and midrange configuration masterfully controls the speaker's dispersion, directing more of the sound towards you and less towards reflective surfaces. For an in-wall speaker, this is a game-changer. It ensures a crystal-clear, stable, and focused image, free from the sonic smear that can plague lesser designs. Dialogue is rendered with pristine clarity, and the soundstage is wide and incredibly well-defined, making the walls themselves seem to disappear.

Output Without Compression

The R7i-LR measures 115.9dB peak at one meter, and 115.9dB with second and third harmonic distortion under 3%, across 100Hz to 20kHz. Those two figures being identical is the useful part: it does not have a loud-but-strained region, because distortion has not climbed by the time it runs out of headroom. Paired with the R7i-C center, it builds a front stage where every channel behaves the same way under load.

On-Wall Mounting

Planning an on-wall installation? The Perlisten S/R7i On-Wall Speaker Frame is the matching low-profile enclosure that mounts this speaker flush to the wall for a clean, finished look.

The Listening Room Difference

We’re a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on trust, not hype. Whether you’re visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don’t just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

Specification

Download the Perlisten R7i-LR Data Sheet (PDF)
